    40mm Axial Cylindrical Roller Bearings / P6 Sealed Cylindrical Roller Bearings

    Ask Lasest Price
    Brand Name : NSK
    Model Number : NU2308E
    Price : USD0.1-1000/pc
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 10000pcs/month
    • Product Details
    • Company Profile

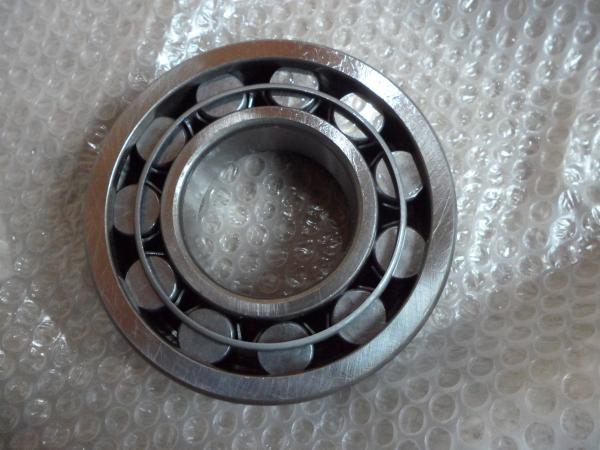

    40mm Axial Cylindrical Roller Bearings / P6 Sealed Cylindrical Roller Bearings

    Stainless Steel Spindle Cylindrical Roller Bearing Single Row NU 2308 E , 40mm Bore


    Cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single and double row full complement bearings (without a cage) and split bearings complete the standard assortment provided here.


    Features of Cylindrical Roller Bearing


    1. High radial load capacity,is suitable for heavy load and impact load.


    2. Small friction, suitable for high speed,the limiting Speed is close to Deep Groove Ball Bearings


    3. N,NU series can adapt to high temperature and allow error during installation.


    4. inner ring and outer ring are separable,easy to install and take down


    Application of Cylindrical Roller Bearing


    1) Cylindrical roller bearings are widely used in automobile, electrical. (Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines)


    2) equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries.


    Package: Usually made by plastic tube+anti-rust paper+box+carton

    Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union

    Delivery Time: 3-25 days, according to the order quantity


    Single row: NU, NJ, NUP, N, NCF and NJG designs

    Double row: NNU, NN and NNF designs


    Quick description:


    Bearing ModelNU 2308 E
    TypeCylindrical Roller Bearing
    Bore Size (mm)40
    Outside Diameter (mm)99
    Width (mm)33
    Mass (kg)1.1
    MaterialChrome Steel, Carbon steel, Stainless steel
    Cage MaterialSteel
    Number of RowSingle Row
    Precision RatingP5. P6
    Basic Dynamic Load Rating (Cr)340 kN
    Basic Static Load Rating (Cor)335 kN
    Limiting Speed4800 r/min


    40mm Axial Cylindrical Roller Bearings / P6 Sealed Cylindrical Roller Bearings


    Bearing No.Boundary Dimensions (mm)Basic Load Rating (KN)Mass
    dDBCCokg
    N308EMNU308EMNJ308EM40902376.877.80.65
    N309EMNU309EMNJ309EM451002593.098.00.95
    N310EMNU310EMNJ310EM5011027105.0112.01.20
    N311EMNU311EMNJ311EM5512029128.0138.01.61
    N312EMNU312EMNJ312EM6013031142.0155.01.94
    N313EMNU313EMNJ313EM6514033170.0188.02.42
    N314EMNU314EMNJ314EM7015035195.0220.02.90
    N315EMNU315EMNJ315EM7516037228.0260.03.59
    N316EMNU316EMNJ316EM8017039245.0270.03.90
    N317EMNU317EMNJ317EM8518041265.0280.05.20
    N318EMNU318EMNJ318EM9019043290.0320.06.17
    N319EMNU319EMNJ319EM9520045320.0350.06.92
    N320EMNU320EMNJ320EM10021547355.0380.08.24
    N322EMNU322EMNJ322EM11024050415.0470.011.20
    N324EMNU324EMNJ324EM12026055440.0552.014.10
    N326EMNU326EMNJ326EM13028058615.0735.019.30
    N328EMNU328EMNJ328EM14030062665.0795.023.70
    N330EMNU330EMNJ330EM15032065715.0855.026.80
    N332EMNU332EMNJ332EM16034068860.01050.033.00
    N334EMNU334EMNJ334EM17036072795.01010.037.50
    N336EMNU336EMNJ336EM18038075905.01150.043.50

    Bearing No.Boundary Dimensions (mm)Basic Load Rating (KN)Mass
    dDBCCokg
    N408MNU408MNJ408M401102790.589.81.15
    N409MNU409MNJ409M4512029102.0100.01.77
    N410MNU410MNJ410M5013031120.0120.02.26
    N411MNU411MNJ411M5514033145.0141.02.95
    N412MNU412MNJ412M6015035148.0144.03.20
    N413MNU413MNJ413M6516037185.0191.03.92
    N414MNU414MNJ414M7018042205.0210.06.40
    N415MNU415MNJ415M7519045254.0265.07.03
    N416MNU416MNJ416M8020048275.0284.08.25
    N417MNU417MNJ417M8521052312.0325.09.50
    N418MNU418MNJ418M9022554350.0360.011.00
    N419MNU419MNJ419M9524055400.0445.013.60
    N420MNU420MNJ420M10025058450.0500.015.50

    Bearing No.Boundary Dimensions (mm)Basic Load Rating (KN)Mass
    dDBCCokg
    N2308EMNU2308EMNJ2308EM40903382.2881.10
    N2309EMNU2309EMNJ2309EM4510036106.01131.51
    N2310EMNU2310EMNJ2310EM5011040128.01422.01
    N2311EMNU2311EMNJ2311EM5512043148.01622.80
    N2312EMNU2312EMNJ2312EM6013046168.01883.38
    N2313EMNU2313EMNJ2313EM6514048190.02123.75
    N2314EMNU2314EMNJ2314EM7015051224.02624.50
    N2315EMNU2315EMNJ2315EM7516055275.03276.33
    N2316EMNU2316EMNJ2316EM8017058275.03326.60
    N2317EMNU2317EMNJ2317EM8518060315.03828.60
    N2318EMNU2318EMNJ2318EM9019064329.03959.20
    N2319EMNU2319EMNJ2319EM9520067394.049610.80
    N2320EMNU2320EMNJ2320EM10021573464.054815.50
    N2322EMNU2322EMNJ2322EM11024080604.078919.50
    N2324EMNU2324EMNJ2324EM12026086710.092021.10
    N2326EMNU2326EMNJ2326EM13028093840.0113026.40
    N2328EMNU2328EMNJ2328EM1403001021020.0138039.50
    N2330EMNU2330EMNJ2330EM1503201081160.0160047.50
