AXK 1226 Large Diameter Thrust Bearing , Chrome Steel Large Thrust Bearing

Ask Lasest Price
Brand Name :	INA
Model Number :	AXK 1226
Certification :	ISO9001:2008
Price :	USD 1.0/pc
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000pcs per month
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

AXK 1226 Large Diameter Thrust Bearing , Chrome Steel Large Thrust Bearing

AXK 1226 Large Diameter Thrust Bearing , Chrome Steel Large Thrust Bearing

Thrust spherical roller bearings are ideal for applications where conditions include heavy loads, difficulties in establishing or maintaining housing alignment and problems with shaft deflection.Spherical thrust roller bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. The rollers have an optimum conformity with the washer raceways to optimize load distribution along the roller length.Therefore,they can accommodate relatively high speeds, heavy axial loads in one direction and heavy radial loads.The load is transmitted between the raceways at an angle to the bearing axis. Spherical roller thrust bearings are self-aligning and can accommodate misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Application

Thrust roller bearings are mainly used for heavy-duty machine tools, power marine gear boxes, oil rig, electrical and other machinery in the vertical.

Basic Info

Model NO.: AXK 1226
The Number of Rows: Single
Material: Bearing Steel
Load Direction: Thrust Bearing
Quality Control: Abec-1, Abec-3, Z1V1, Z2V2
Target Market: Europe, Asia, USA
Trademark: DWR Or Your Brand
Specification: ISO9001-2008
HS Code: 84821020

Rolling Body: Roller Bearings
Outer Dimension: Extra Large (440mm)
Spherical: Aligning Bearings
Separated: Separated
Company Nature: Manufacturer
OEM Order: Acceptable
Transport Package: Single Color Box Packing
Origin: Linqing of China

AXK 1226 Large Diameter Thrust Bearing , Chrome Steel Large Thrust Bearing

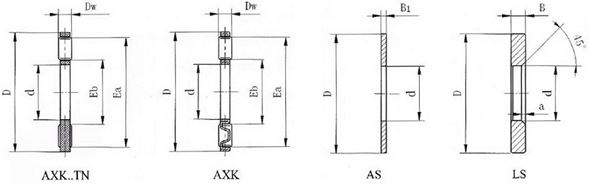

Bearing No.	Thrust Washer		Boundary Dimensions (mm)								Basic Load Rating (KN)		Limited Speed	Mass
Bearing No.	Thrust Washer		d	D	Dw	B1	B	a	Eb	Ea	C	Co	rpm	kg
AXK0414TN	AS0414		4	14	2	1			5	13	3.52	6.40	16800	0.001
AXK0515TN	AS0515		5	15	2	1			6	14	3.80	7.36	16800	0.001
AXK0619TN	AS0619	LS0619	6	19	2	1	2.75	0.3	7	18	5.44	12.40	15200	0.004
AXK0821TN	AS0821	LS0821	8	21	2	1	2.75	0.3	9	20	6.24	15.52	14400	0.004
AXK1024	AS1024	LS1024	10	24	2	1	2.75	0.3	12	23	7.36	20.40	13600	0.007
AXK1226	AS1226	LS1226	12	26	2	1	2.75	0.3	14	25	7.92	23.20	12000	0.008
AXK1528	AS1528	LS1528	15	28	2	1	2.75	0.3	17	27	9.04	28.80	10400	0.009
AXK1730	AS1730	LS1730	17	30	2	1	2.75	0.3	19	29	9.52	31.60	9600	0.009
AXK2035	AS2035	LS2035	20	35	2	1	2.75	0.3	22	34	10.48	37.20	8000	0.013
AXK2542	AS2542	LS2542	25	42	2	1	3.00	0.6	29	41	11.76	46.40	6800	0.019
AXK3047	AS3047	LS3047	30	47	2	1	3.00	0.6	34	46	13.04	56.00	6000	0.022
AXK3552	AS3552	LS3552	35	52	2	1	3.50	0.6	39	51	14.24	64.80	5200	0.029
AXK4060	AS4060	LS4060	40	60	3	1	3.50	0.6	45	58	22.40	91.20	4800	0.040
AXK4565	AS4565	LS4565	45	65	3	1	4.00	0.6	50	63	24.00	102.40	4000	0.050
AXK5070	AS5070	LS5070	50	70	3	1	4.00	0.6	55	68	25.60	114.40	3840	0.055
AXK5578	AS5578	LS5578	55	78	3	1	5.00	0.6	60	76	30.40	148.80	3440	0.088
AXK6085	AS6085	LS6085	60	85	3	1	4.75	1.0	65	83	35.60	187.20	3200	0.097
AXK6590	AS6590	LS6590	65	90	3	1	5.25	1.0	70	88	37.20	204.00	2960	0.115
AXK7095	AS7095	LS7095	70	95	4	1	5.25	1.0	74	93	43.20	204.00	2800	0.123
AXK75100	AS75100	LS75100	75	100	4	1	5.75	1.0	79	98	44.00	212.00	2640	0.142
AXK80105	AS80105	LS80105	80	105	4	1	5.75	1.0	84	103	44.80	224.00	2480	0.151
AXK85110	AS85110	LS85110	85	110	4	1	5.75	1.0	89	108	46.40	232.00	2400	0.159
AXK90120	AS90120	LS90120	90	120	4	1	6.50	1.0	94	118	58.40	324.00	2160	0.234
AXK100135	AS100135	LS100135	100	135	4	1	7.00	1.0	105	133	72.80	448.00	2000	0.350
AXK110145	AS110145	LS110145	110	145	4	1	7.00	1.0	115	143	77.60	496.00	1840	0.385
AXK120155	AS120155	LS120155	120	155	4	1	7.00	1.0	125	153	81.60	544.00	1680	0.415
AXK130170	AS130170	LS130170	130	170	5	1	9.00	1.0	136	167	106.40	672.00	1520	0.663
AXK140180	AS140180	LS140180	140	180	5	1	9.50	1.0	146	177	110.40	720.00	1440	0.749
AXK150190	AS150190	LS150190	150	190	5	1	9.50	1.0	156	187	114.40	768.00	1360	0.796
AXK160200	AS160200	LS160200	160	200	5	1	9.50	1.0	166	197	118.40	816.00	1280	0.842

Bearing No.	Boundary dimensions				Basic load ratings(kN)		Limiting speed	Mass
	mm				Dynamic	Static	rpm	kg
	d	D	B	rsmin	Cr	Cor	Oil	≈
29230	150	215	39	1.5	340	1,340	1,800	4.56
29232	160	225	39	1.5	360	1,460	1,700	4.88
29234	170	240	42	1.5	425	1,770	1,600	6.02
29236	180	250	42	1.5	450	1,920	1,600	6.27
29238	190	270	48	2	530	2,230	1,400	8.8
29240	200	280	48	2	535	2,300	1,400	9.14

29317	85	150	39	1.5	265	820	2,300	2.94
29318	90	155	39	1.5	285	915	2,300	3.08
29320	100	170	42	1.5	345	1,160	2,100	3.94
29322	110	190	48	2	445	1,500	1,800	5.78
29324	120	210	54	2.1	535	1,770	1,600	7.92
29326	130	225	58	2.1	615	2,100	1,500	9.76
29328	140	240	60	2.1	685	2,360	1,400	11.4
29330	150	250	60	2.1	675	2,390	1,400	12
29332	160	270	67	3	820	2,860	1,300	15.9
29334	170	280	67	3	855	3,050	1,200	16.6
29336	180	300	73	3	995	3,600	1,100	21.2
29338	190	320	78	4	1,150	4,250	1,100	26
29340	200	340	85	4	1,280	4,600	980	31.9
