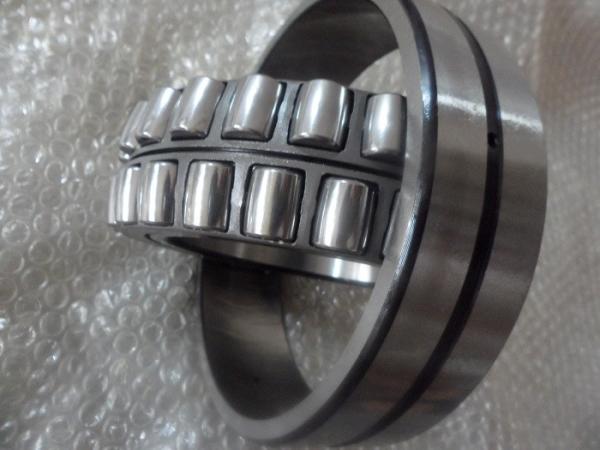

22210CCK/C3 22210CAM/C3 Sealed Spherical Roller Bearings Steel Cage And Brass Cage

Spherical roller bearing is a rolling-element bearing that permits rotation with low friction,and permits angular misalignment. Typically spherical roller bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring. The misalignment is possible due to the spherical internal shape of the outer ring and spherical rollers. Most spherical roller bearing is designed with two rows of rollers, allowing them to take very heavy radial loads and heavy axial loads. There are also designs with one row of rollers, suitable for lower radial loads and virtually no axial load.

Feature:

1. Design – Elimination of the guide ring allowed for a design change that improves cage balance and strength.
   2. Material Technology – HPS series is made from high-cleanliness Z steel. Special surface treatment of spherical roller bearing increases resistance to wear.
   3. Offer advanced material options: Super TF and TL steel, depending on application requirements.
   4. Advanced Technology - patented Molded Oil lubrication system is also available.
   5. Bearings are also available with an oil groove and holes in the outer ring for re-lubrication purposes. Optional inner ring oil groove and holes available
   6. Seal Technology - offers different sealing materials depending on the operating temperature of the bearing.
   7. Cage Materials – Available in steel, brass or polyamide depending on the requirements of the application.
   8. Manufacturing Technology – Advanced production system guarantees outstandingquality control.
   9. Life – up to 2 times the operating life of industry standard spherical roller bearing.
   10. Reduced maintenance costs – downsizing to smaller bearings while improving performance and lengthening equipment operating life.

Application Area:

Spherical roller bearing are used in a variety of applications. Examples include mining, petroleum production, power generation, power transmission, cement processing, aggregate crushing, and metal recycling. Some spherical roller bearings are used in briquetting machines, rubber mixing equipment, rolling mills, rotary dryers, or pulp and paper machinery. Others are used in construction equipment, crushers, electric motors, blowers and fans, gears and drives, plastics machinery, machine tools and traction motors and pumps.

DWR Bearing Co., Ltd. was founded in 1998, after more than 10 years of development, nowadays has become into a group corporation with several subsidiaries. Our factory covers an area of 30, 000 square meters, construction area of 19, 000 squre meters, along with advanced production line and modern test management. At present, the quality of our bearings has reached advanced level in the international market. Our business philosophy is Quality First with Faith Base. We mainly produce Deep groove ball bearing, Self-aligning bearing, Taper roller bearing in Metric and Inch sizes, Cylindrical roller bearing, Pillow block bearing, Rolling mill bearing and Multi-row composite bearing. Our products are exported to Southeast Asia, Europe, the Americas, the Middle East etc. Our company with high-quality, reasonable price, good reputation won the high praise from customers at home and abroad. In 2002 we obtained ISO9001:2000 international quality system certification. Meanwhile, we have been absorbed in product quality and advanced technology aiming to provide excellently precise products all these years
